COMP Cams HRT No Springs Required Stage 1 Cam for '11+ Dodge 6.4L HEMI COMP-MK201-300-17

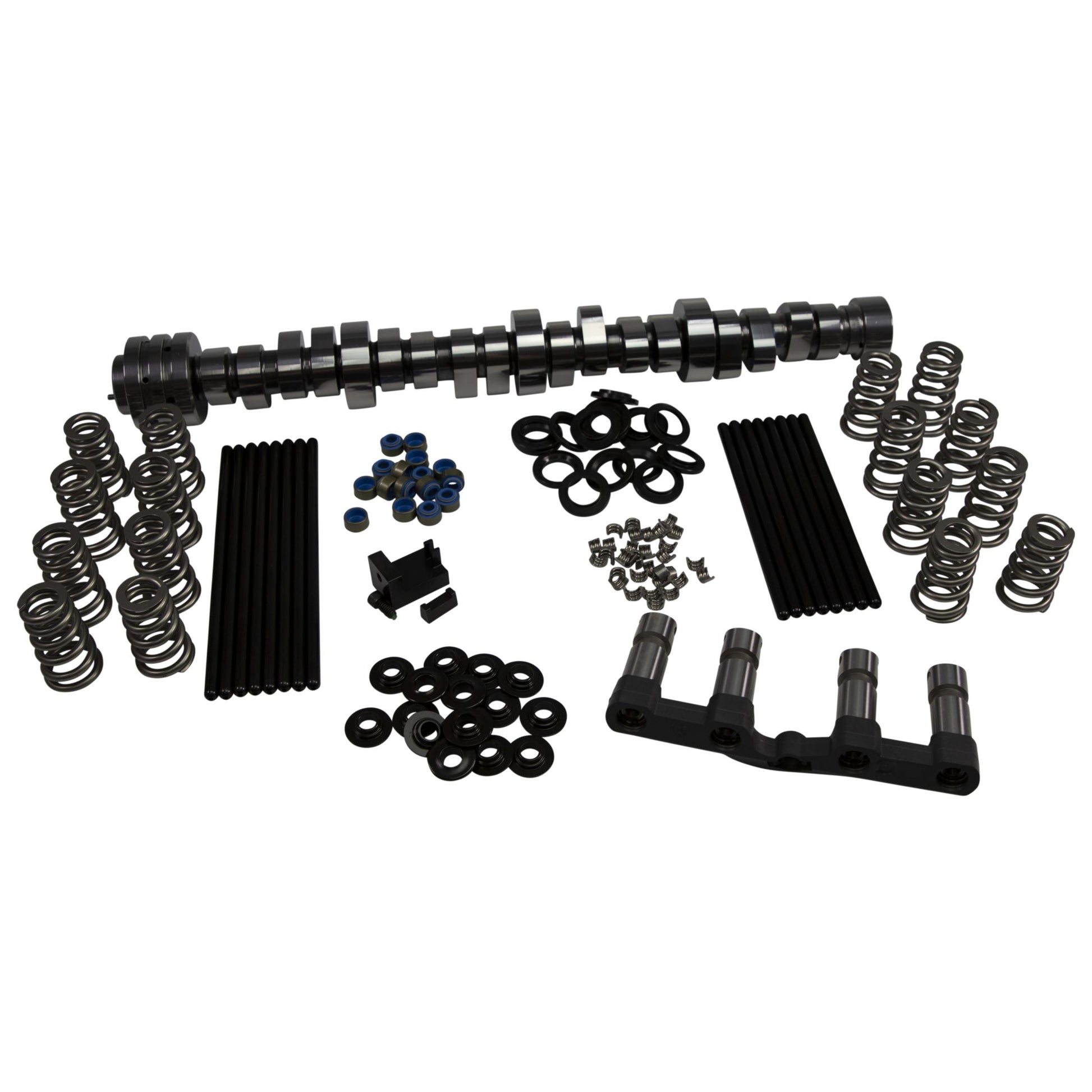

COMP Cams HRT Camshaft Packages for Dodge Gen III HEMI applications take the guesswork out of choosing the right valve train upgrade package for your specific engine and desired performance. The “Low Shock Technology” behind COMP Cams HRT camshafts features lobe profiles designed to maximize horsepower while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. By Spintron and dyno testing these new profiles with many combinations of valve train components, COMP Cams engineers have created valve train packages that are perfectly matched for maximum horsepower and reliability in popular modern HEMI applications. The resulting Stage 1, Stage 2 and Stage 3 HRT Camshaft Packages can add up to 170 horsepower (depending on the application) and are available as base Cam Kits (CK-Kit) or the more complete Master Kits (MK-Kit). CK-Kits include camshaft, phaser limiter (VVT Hemi only), pushrods, Beehive or Conical Valve Springs, chromemoly steel retainers, valve locks, spring seats and valve seals. MK-Kits include everything found in the CK-Kit with the addition of upgraded, drop-in performance lifters.

Attributes:

• GTIN: 00036584405276
• Brand Name: COMP Cams
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Kit Type: MK-Kit
• Camshaft Series: HRT NSR
• Usage: Performance
• Cam Type: Hydraulic Roller
• Basic Operating RPM Range: 1,800-6,800
• Intake Duration at .050 Inch Lift: 218
• Exhaust Duration at .050 inch Lift: 228
• Advertised Intake Duration: 271
• Advertised Exhaust Duration: 279
• Lobe Separation: 114
• Intake Valve Lift: 0.571
• Exhaust Valve Lift: 0.545
• Lifters Included: Yes
• Valve Springs Included: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Billet Steel
• Lifter Type: Hydraulic Roller
• Retainers Included: Yes
• Locks Included: Yes
• Pushrods Included: Yes
• Gaskets Included: No
• Engine Family: Dodge 5.7L and 6.4L HEMI w/ VVT (2010+)
• Stage: 1
• Timing Set Included: No
• Valve Seals Included: Yes
• Valve Spring Seats Included: Yes
• Grind Number: LST269HR14
• Estimated Horsepower Gain with Kit: 61
• Recommended Upgraded Stock Rocker Arms: N/A
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 22.25 x 10.25 x 5 inches
• Weight: 26 lb
